MikroTik QoS 配置指南 - 流量优先级限速优化方案

方案概述

通过流量标记和队列管理实现以下优先级：

1. 最高优先级：PING、DNS
2. 次优先级：小包流量（上行<192B/下行<512B）、网页流量
3. 最低优先级：其他常规流量

一、流量标记配置（Mangle）

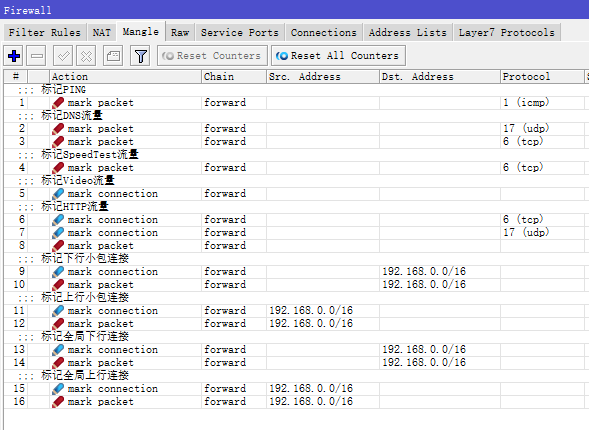

1.1 整体配置视图

1.2 配置脚本

/ip firewall mangle
# ICMP标记
add action=mark-packet chain=forward comment="Mark Ping" new-packet-mark=PING passthrough=no protocol=icmp

# DNS标记
add action=mark-packet chain=forward comment="Mark DNS Query" new-packet-mark=DNS_P passthrough=no port=53 protocol=udp

# SpeedTest标记
add action=mark-packet chain=forward comment="Mark SpeedTest" new-packet-mark=SpeedTest passthrough=no port=8080 protocol=tcp

# Web流量标记（HTTP/HTTPS）
add action=mark-connection chain=forward comment="Mark Web Traffic" new-connection-mark=WebC passthrough=yes port=80,443 protocol=tcp
add action=mark-connection chain=forward new-connection-mark=WebC passthrough=yes port=80,443 protocol=udp
add action=mark-packet chain=forward connection-mark=WebC new-packet-mark=WebP passthrough=no

# 小包流量标记
add action=mark-connection chain=forward comment="Mark MiniPackets Down" dst-address=192.168.0.0/16 new-connection-mark=MiniCDown packet-size=0-512 passthrough=yes
add action=mark-packet chain=forward connection-mark=MiniCDown dst-address=192.168.0.0/16 new-packet-mark=MiniPDown passthrough=no
add action=mark-connection chain=forward comment="Mark MiniPackets Up" new-connection-mark=MiniCUp packet-size=0-192 passthrough=yes src-address=192.168.0.0/16
add action=mark-packet chain=forward connection-mark=MiniCUp new-packet-mark=MiniPUp passthrough=no src-address=192.168.0.0/16

# 常规流量标记
add action=mark-connection chain=forward comment="Mark General Down" dst-address=192.168.0.0/16 new-connection-mark=GenDownC passthrough=yes
add action=mark-packet chain=forward connection-mark=GenDownC dst-address=192.168.0.0/16 new-packet-mark=GenDownP passthrough=no
add action=mark-connection chain=forward comment="Mark General Up" new-connection-mark=GenUpC passthrough=yes src-address=192.168.0.0/16
add action=mark-packet chain=forward connection-mark=GenUpC new-packet-mark=GenUpP passthrough=no src-address=192.168.0.0/16

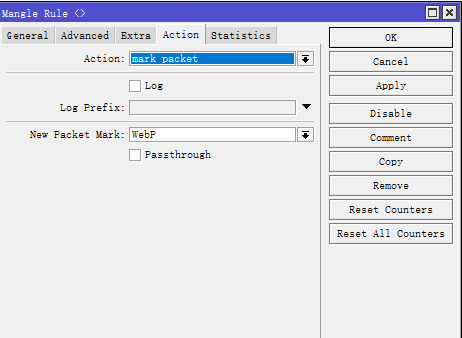

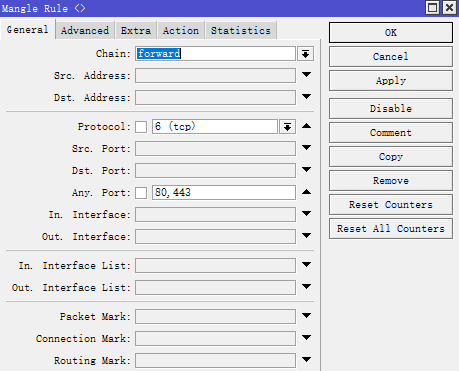

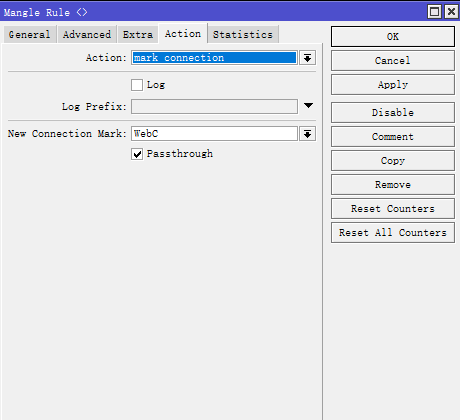

1.3 Web流量标记示例

二、队列类型配置

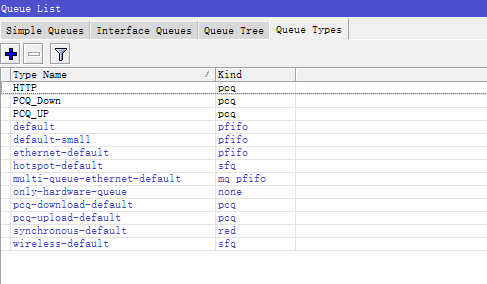

2.1 队列类型视图

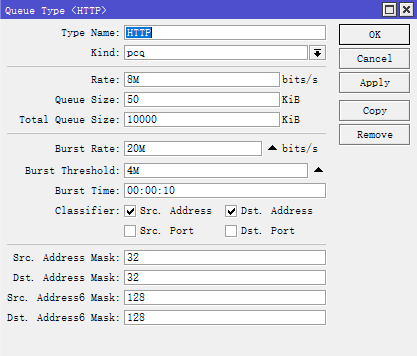

2.2 Web流量队列示例

2.3 配置脚本

/queue type
add kind=pcq name=Gen_Down pcq-classifier=src-address pcq-rate=12M pcq-total-limit=20000KiB
add kind=pcq name=Gen_UP pcq-burst-time=20s pcq-classifier=src-address pcq-rate=20M pcq-total-limit=10000KiB
add kind=pcq name=Web pcq-burst-rate=20M pcq-burst-threshold=8M pcq-classifier=src-address pcq-rate=12M pcq-total-limit=10000KiB

三、队列树配置

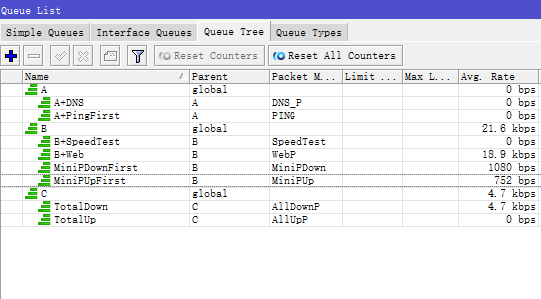

3.1 队列树结构

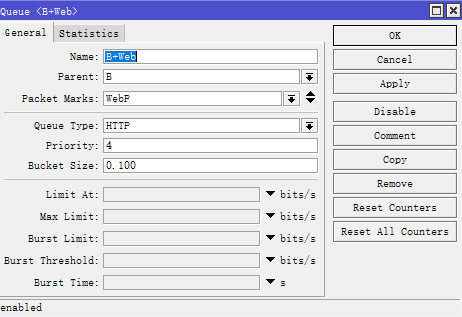

3.2 Web限速配置

3.3 配置脚本

/queue tree
add name=A parent=global
add name=DNS packet-mark=DNS_P parent=A priority=1
add name=PingFirst packet-mark=PING parent=A priority=1

add name=B parent=global
add name=MiniPDownFirst packet-mark=MiniPDown parent=B priority=2
add name=MiniPUpFirst packet-mark=MiniPUp parent=B priority=2
add name=SpeedTest packet-mark=SpeedTest parent=B priority=3
add name=Web packet-mark=WebP parent=B priority=4 queue=Web

add name=C parent=global
add name=GenDown packet-mark=GenDownP parent=C queue=Gen_Down
add name=GenUp packet-mark=GenUpP parent=C queue=Gen_UP

四、快速部署脚本

1. 下载配置文件
   https://cloud.189.cn/web/share?code=7BVNVnjea2Q3（访问码：5ft8）

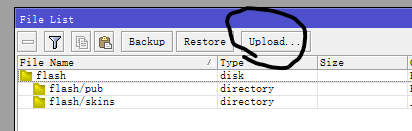

2. 上传到路由器后执行：

   import file=qos.rsc

3. 验证配置：

   • 检查队列树匹配计数
   • 根据实际带宽调整限速参数
   • 内网地址段按需修改（默认192.168.0.0/16）

注意：所有带宽数值需根据实际网络环境调整，建议导入后通过图形界面微调参数。
